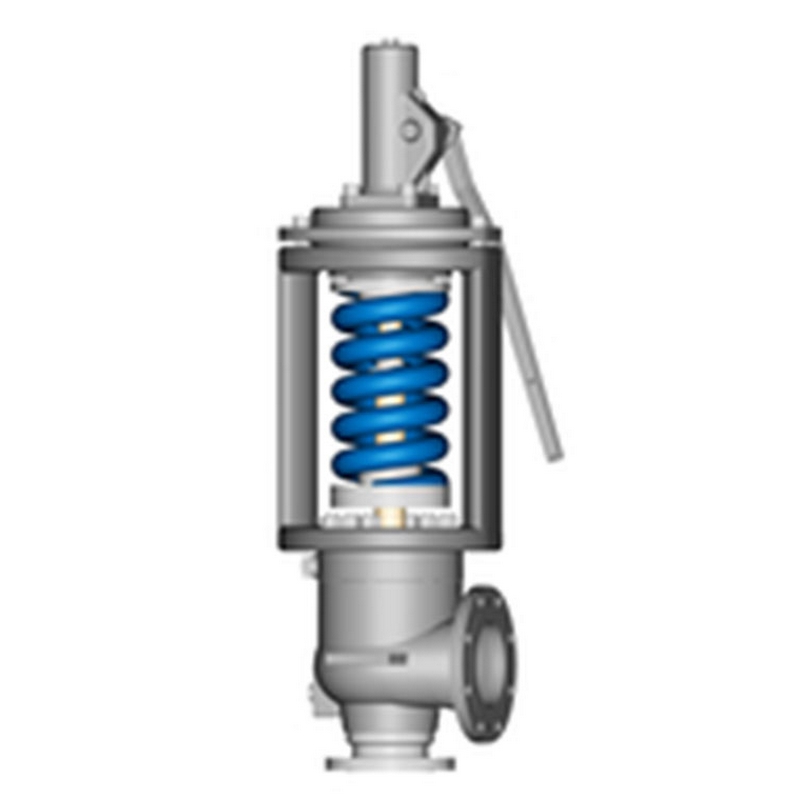

Si 9101 – 05
Applications
- Power plants and industrial steam generation
- Steam applications in the petrochemical industry
- Steam boilers
- Superheaters
- Process steam systems
Design
| Sizes | NPS 1 1/2″ to NPS 10″ |
| Pressure ratings | 150# to 1500# |
| Flow diameters | 20 mm to 120 mm
0,787 inch to 4,724 inch |
| Set pressures | 1 bar to 150 bar
14,5 psi to 2175 psi |
| Temperature range | -46 °C to 620 °C
-50 °F to 1150 °F |
| Temperature range | -46 °C to 620 °C
-50 °F to 1150 °F |
| Materials | WCB
WC9 C12A Other materials available on request |
Approvals
PED 97/23/EC (CE); ASME: I (V), III (NV), VIII (UV)
