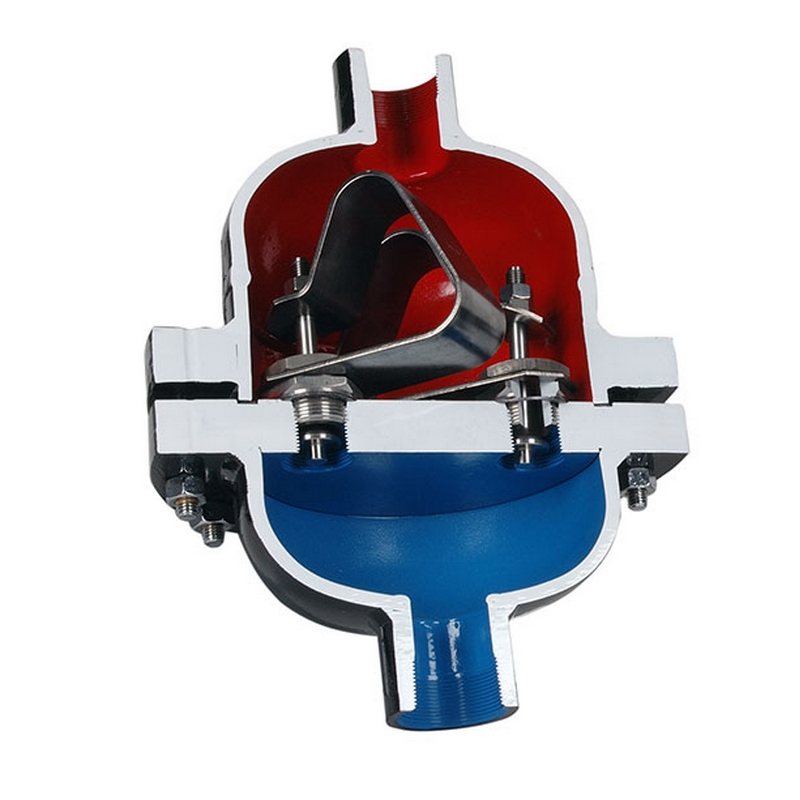

Magnum Series
A versatile line of high capacity steam traps, Bestobell’s Magnum can be supplied with up to 18 bimetallic elements for hot condensate flows as high as 149,000 pounds per hour. With five models available for operating pressures up to 320 psig, you can add or delete elements to match your changing conditions.
- Different Models to handle operating pressures from: 30 psi (2,1 bar) to 320 psi (22,1 bar)
- Single blade element – offers long-term, trouble-free service because it’s not prone to dirt build-up as encountered with many other bimetal designs
- Stainless Steel internals – leads to longer service life since materials are highly resistant to fatigue and corrosion
- Modulating discharge – automatically adjusts to operating pressure and load
- Multiple elements – allows for variable flow conditions and the ability to add or remove elements based on future flow conditions
- Continuous air and CO2 venting – maximizes heat transfer while minimizing corrosion
- High cold start-up capacity: with cold flow capacities from 4 – 8 times higher than the hot running load capacity of the trap, process temperatures will be reached faster leading directly to savings on the bottom line
- Single element version offers flows to 11,000 PPH (4989 kg) and a 30 psi (2,1 bar) operating pressure and up to 9200 PPH (4173 kg) hot 70 psi (4,8 bar) operating pressure with 50000 and 46000 PPH cold capacity
Specifications
- Different Models to handle operating pressures from: 30 psi (2,1 bar) to 320 psi (22,1 bar)
- Single blade element – offers long-term, trouble-free service because it’s not prone to dirt build-up as encountered with many other bimetal designs
- Stainless Steel internals – leads to longer service life since materials are highly resistant to fatigue and corrosion
- Modulating discharge – automatically adjusts to operating pressure and load
- Multiple elements – allows for variable flow conditions and the ability to add or remove elements based on future flow conditions
- Continuous air and CO2 venting – maximizes heat transfer while minimizing corrosion
- High cold start-up capacity: with cold flow capacities from 4 – 8 times higher than the hot running load capacity of the trap, process temperatures will be reached faster leading directly to savings on the bottom line
- Single element version offers flows to 11,000 PPH (4989 kg) and a 30 psi (2,1 bar) operating pressure and up to 9200 PPH (4173 kg) hot 70 psi (4,8 bar) operating pressure with 50000 and 46000 PPH cold capacity
