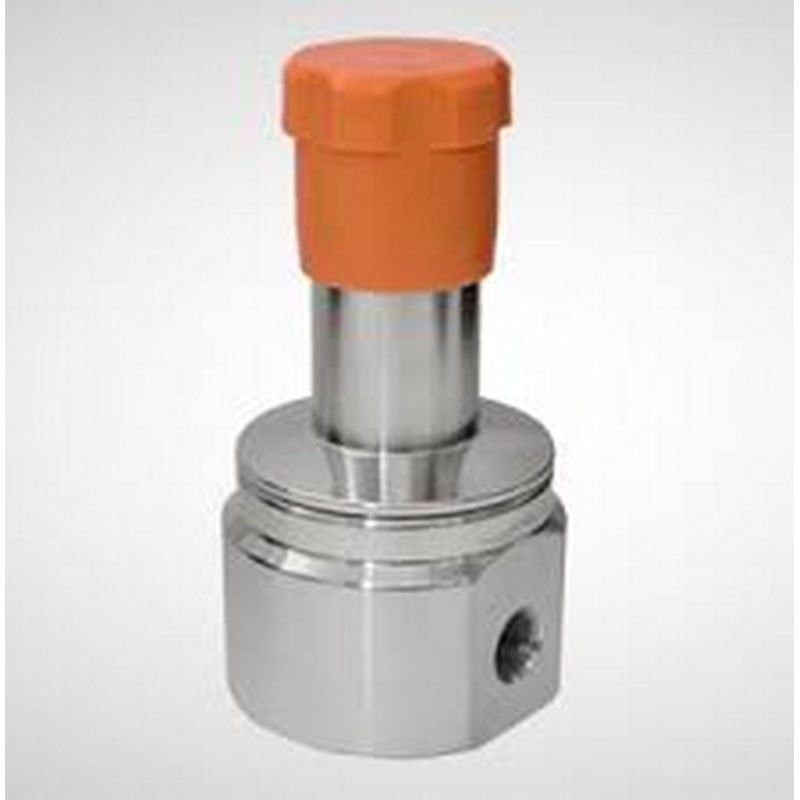

JRHF Series

The JRHF Series is a diaphragm operated, balanced trim pressure regulator. The choice between 1.5 and 1.9Cv offers increased flows across the JRHF’s 230 psi inlet range, while the PTFE soft seat provides ANSI Class VI shutoff. Four set spring ranges and three soft seal options offer the customer flexibility in a number of applications and environments. These valves are designed to regulate a variety of gases and liquids in applications where high flows and low control pressures are required.


  • Top entry design facilitates in-line cleaning and maintenance
  • Barstock construction guarantees material integrity and surface finish
  • Balanced trim offers high flows with minimal lockup
  • Optimized internal volume
  • Proprietary Jorlon diaphragm material provides exceptionally long life
  • PTFE or PEEK soft seat for ANSI Class VI shutoff


  • 1/2”, 3/4” & 1”

End Connections

  • Threaded
  • Socket Weld
  • Flanged

Diaphragm Material

  • Jorlon

Spring Ranges

  • 0-20 (0-1,4); 0-50 (0-3,4); 0-100 (0-6,9); 0-150 (0-10,3) psi (bar).
