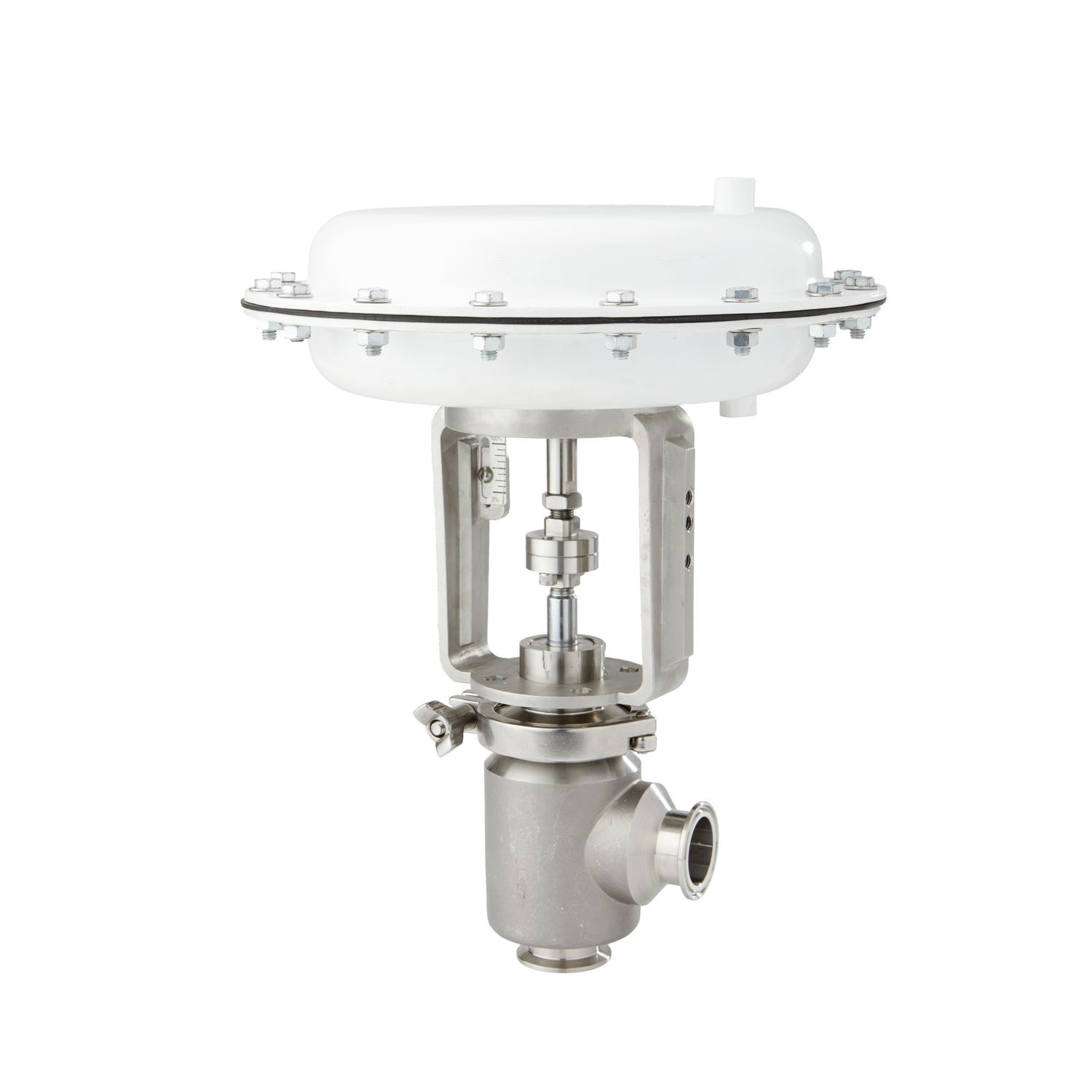

FBCV-OR Series – Sanitary Control Valves- OR Version
The FBCV O-Ring Series is designed to meet the rigid specifications for sanitary process control valves for customers who prefer an O-ring style stem seal. This valve series is suitable for a wide variety of applications in the cosmetic, dairy and food and beverage industries. Conforming to 3A guidelines, the FBCV is ideally suited for a wide range of flowing media in both the utility and process areas of sanitary systems.
High rangeability, characterized trim, high capacities, superior temperature and pressure ratings along with a selection of sealing methods make the FBCV the sanitary control valve for liquid, gas and steam services. Whether the need is to control pressure, temperature, flow, pH, or another variable, the FBCV is the right valve for your process.
Features:
- FDA compliance standard on all process seal and seat materials (except Buna-N)
- Self draining – Angle Body: when mounted in vertical (all sizes) or horizontal orientations
- Mechanically polished internal components – 32Ra finish – standard
- Maintenance-friendly – easy to perform sanitary maintenance with simple disassembly and reassembly
- Steel, baked corrosion resistant coated multi-spring actuators to meet a wide range of differential pressure requirements while providing excellent corrosion resistance during washdown
Sizes
- 1″ (DN25) through 3″ (DN 80)
End Connections
- Sanitary Clamp Ends
Body Material
- ASTM A351 CF3M 316L
Flow Characteristics
- Linear, equal percentage, or quick opening
Shutoff
- Standard: ANSI Class III with metal seat
- Optional: ANSI Class VI with soft seat (CV ≥ 3.5 only)
