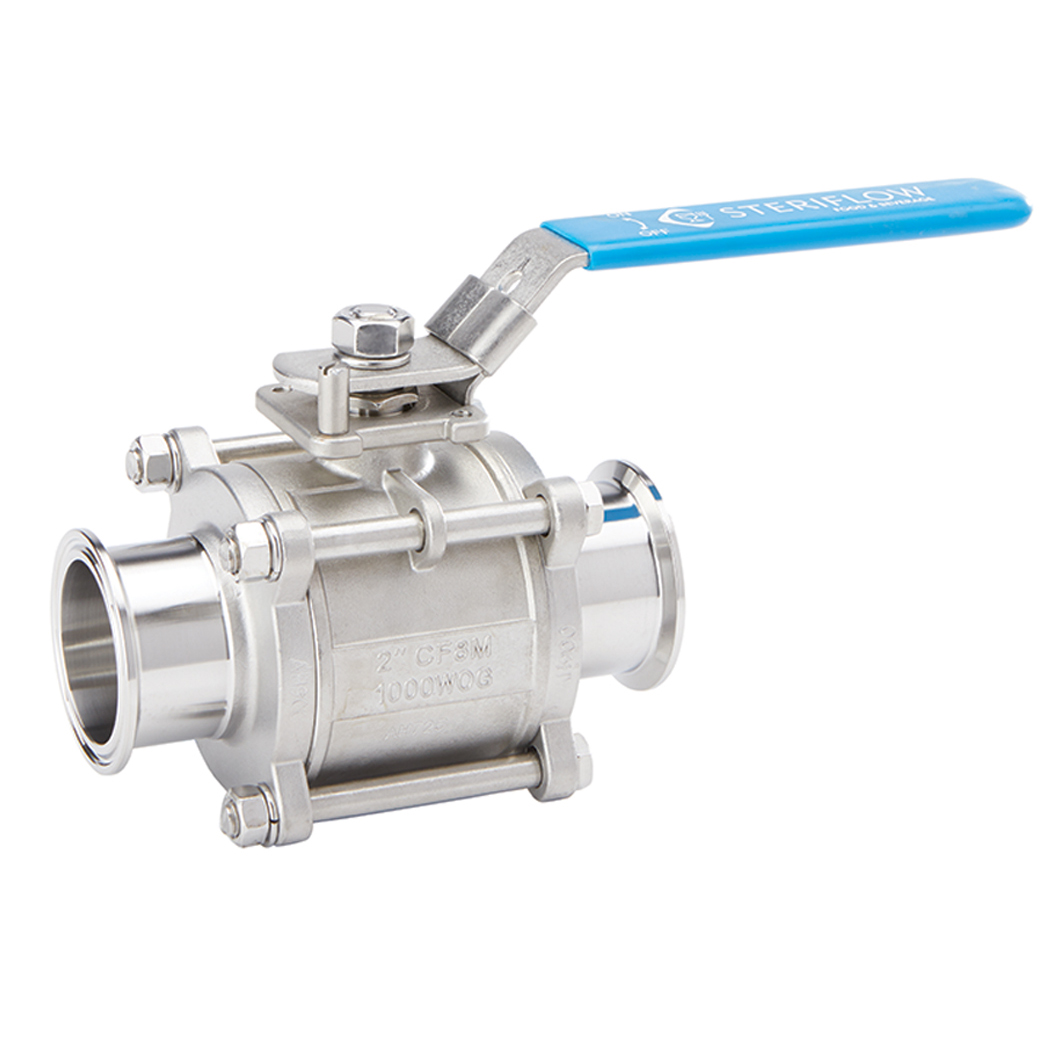

FB8905 Series Cavity – Filled Ball Valves

The FB8905 Series is designed specifically for food and beverage applications. It has cavity filler seats and tri-clamp ends to minimize where media can collect. The inner diameter of the end connections is the same as the ID of the ball, ensuring no obstruction of flow from inlet to outlet.


  • 3A Approved
  • Pressure ratings up to 1000 psi (69 bar) for 1/2″ – 2″ and 800 psi (55 bar) for 2-1/2″ – 4″
  • PTFE cavity filler seat
  • Lockable handle prevents accidental opening or closing of valve
  • Anti-blowout stem
  • Sanitary clamp connection
  • Available as manual or actuated (pneumatic/electric) valve


  • 1/2” – 4″

End Connections

  • Sanitary Clamp Ends

Body Material

  • A351 CF8M
