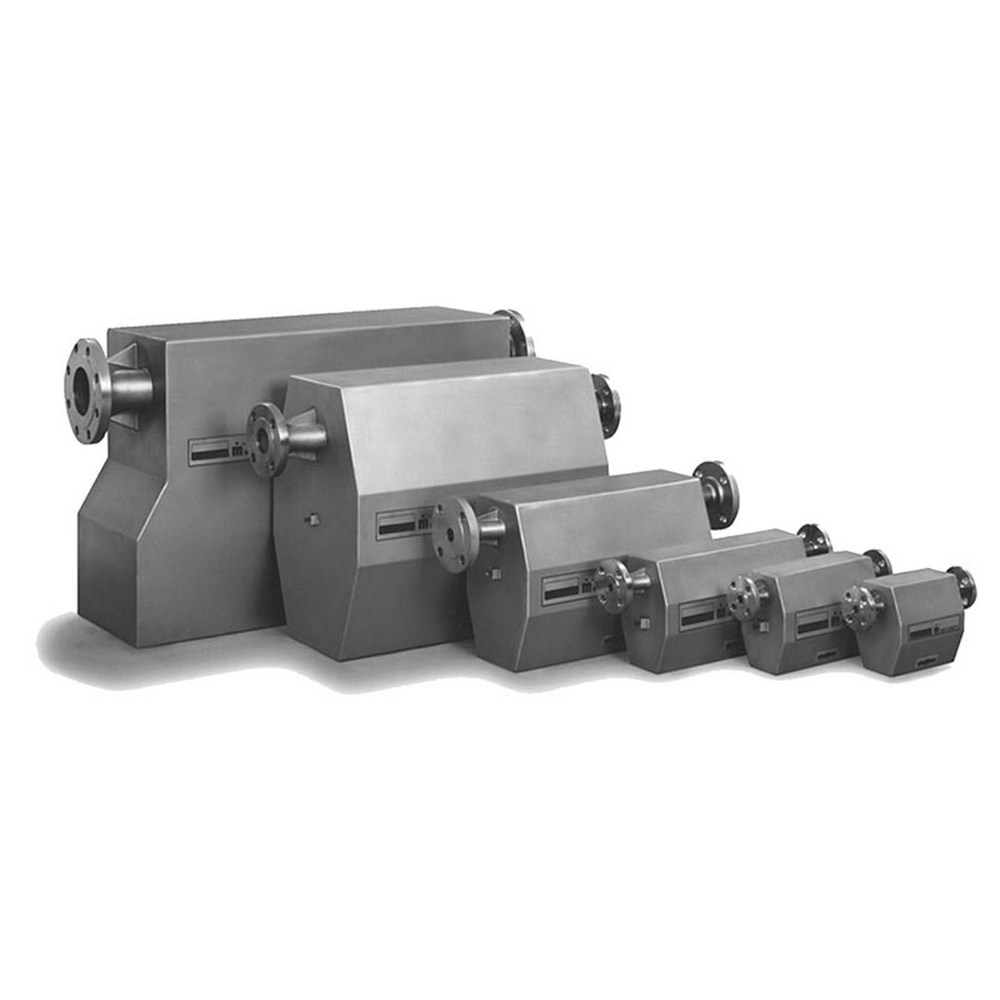

Coriolis Mass Flowmeters
- Direct mass, density and temperature measurement
- Weights & Measures approved for custody transfer applications
- Patented omega-shaped flowtubes provide unequaled sensitivity to Coriolis force
- Wide 100:1 turndown
- Lowest pressure drop
- Smooth-bore, non-obtrusive flow path free from moving parts
- 316L stainless steel
- 3A-Authorized version available
- Ideal for liquid sugar, viscous fluids, caustic liquors,lime slurries, desulfurization slurries, kiln feeds, lube oil blending, bulk loading/unloading
DESIGN FEATURES
ACCURACY
Patented dual omega-shaped tubes provide outstanding sensitivity to Coriolis forces. ® mass flow accuracy is ±0.10% and the mass flow rate repeatability is ±0.10%. Its density accuracy is ±0.001 g/cc over its operating range.
LOW PRESSURE DROP AND 100:1 TURNDOWN
The ® transducer is more sensitive to Coriolis forces than conventional mass flowmeters, providing a greater mechanical gain. Fluid velocity requirements are much lower to produce a given signal. This results in a lower pressure drop and unequalled 100:1 turndown. Therefore, accuracy never has to be compromised to obtain an acceptable pressure drop.
RELIABILITY
The smooth-bore, non-obtrusive flow path is free from moving parts, seals and bellows. The omega shapes produce torsional loading instead of bending loading for improved reliability.
