BA Series

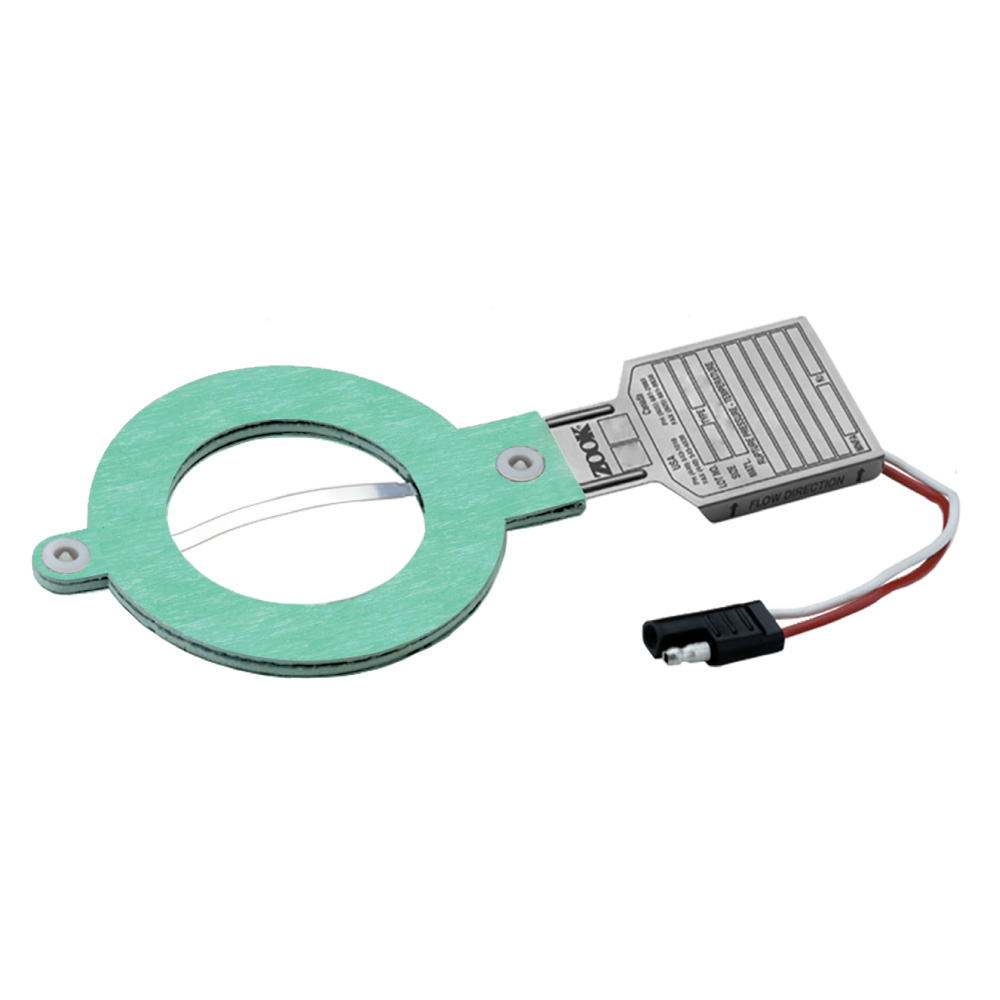

The BA Series is a Rupture Disk Burst Sensor. When a pressure surge causes a relief valve to open, it also opens the rupture disk under the valve. This leaves the valve vulnerable to chemical attack. The BA Burst Sensor reduces this threat by constantly monitoring the disk. When connected to an electrical alarm, the BA Burst Sensor alerts personnel to take immediate action to protect system components from further damage.

  • Re-Settable
  • Sizes 1” thru 36” (25 mm – 900 mm)
  • Electrically conductive
  • installs on vent side of the disk holder or alone
  • Requires minimal flange face-to-face clearance
  • Adapts to virtually all makes/types of rupture disks, including Graphite types
  • Fits easily into existing pipe systems
  • Standard Connection: Red and White wired weatherproof Connector (Connection 1)
  • Leak detection options includes the BA-L with an integral Leak Detector, and the LD (sold separately) for use with a standard BA. Both will indicate if the rupture disk or relief valve is leaking fugitive emissions downstream though the assembly
  • Moisture and abrasion resistant connector features two-pin bullet terminal
  • Compatible with Metal or Graphite Rupture Disks or for stand alone use (relief valve applications)
