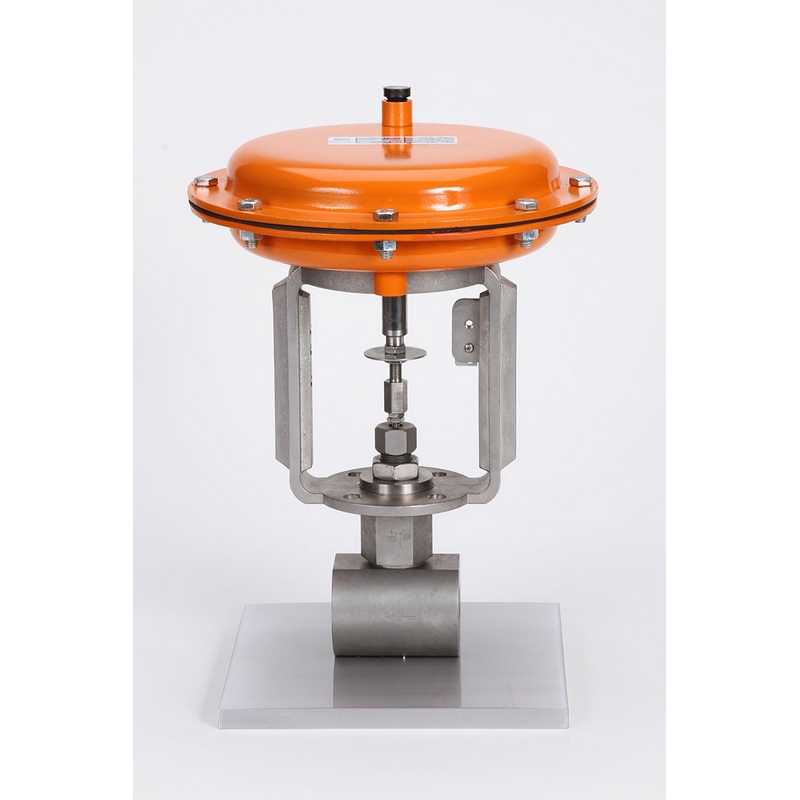

8000 Series Control Valve
The Mark 8000 Series is a group of heavy-duty control valves specifically designed for process applications requiring full flow or fractional flow control. Available in a wide selection of body sizes and styles, this valve can be configured in two-way or three-way designs, for diverting or mixing service, and with globe or angle valve style seats. It can be ordered with a bellows stem seal, or an extended bonnet extension for cryogenic applications down to -425°F (-254°C), or with an electric actuator. It has a totally enclosed multi-spring actuator, which minimizes deadband and is field reversible without the use of special tools or extra parts. LowFlow Valve can also install a wide variety of positioners and actuators on the Mark 8000 to provide a valve that meets specific requirements. The Mark 8000 Series valve subassembly is manufactured completely from barstock, which combined with the standard heavy duty yoke and actuator, gives the valve the ability to handle pressure up to 6000 psi (414 bar), while still being able to offer Cv’s ranging from 0.05 – 17 (Kv’s 0,04 to 14.6). The barstock body design also allows greater flexibility when specialty materials are required. While the standard body materials are Stainless Steel and Carbon Steel, the Series 8000 can be manufactured in almost any exotic alloy, including Alloy 20, Hastelloy, Inconel and Monel. The Mark 8000 body material is not limited to alloys. I can also be manufactured in PVC or Kynar for applications where thermoplastics offer a better solution over alloy materials.
Features
- Heavy-duty barstock construction for pressures up to 6000 psi (414 bar)
- Specialty alloys are readily available, making the Mark 8000 Series ideal for corrosive or harsh process environments
- Application flexibility – wide selection of body sizes and types including 2-way or 3-way designs
- Globe design to 2” (DN50); angle pattern to 1” (DN25)
- In-line maintainable for quick, easy trim repairs
